Refrigeration (Pvt) Ltd. · Since June 1995
Leadership, innovation and research & development keep us at the cutting edge of refrigeration. Our engineers and designers use state-of-the-art equipment to solve even the most intricate cold-chain challenges.

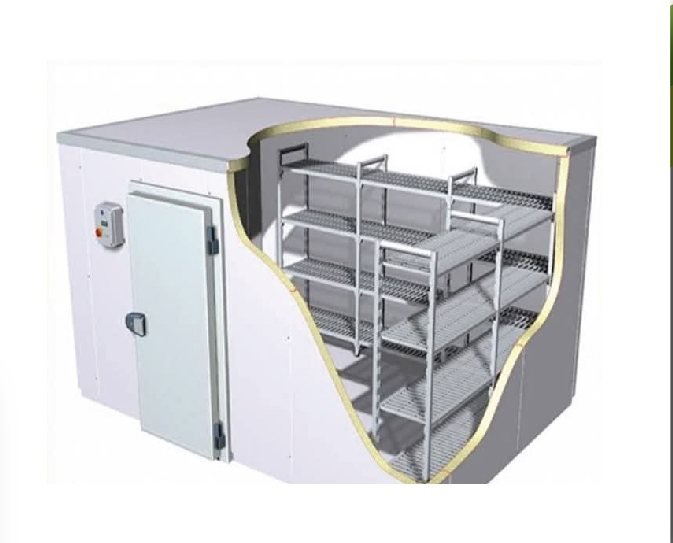

Drag to rotate the cold room
Founded in June 1995, National Kold Refrigeration (Pvt) Ltd is a leading manufacturer of insulated sandwich panels for cold storage facilities and walk-in rooms across Pakistan. We are committed to delivering customized HVACR solutions tailored to the diverse needs of various industries and commercial sectors.
Drag, swipe or use the arrows to turn the 3D showcase.

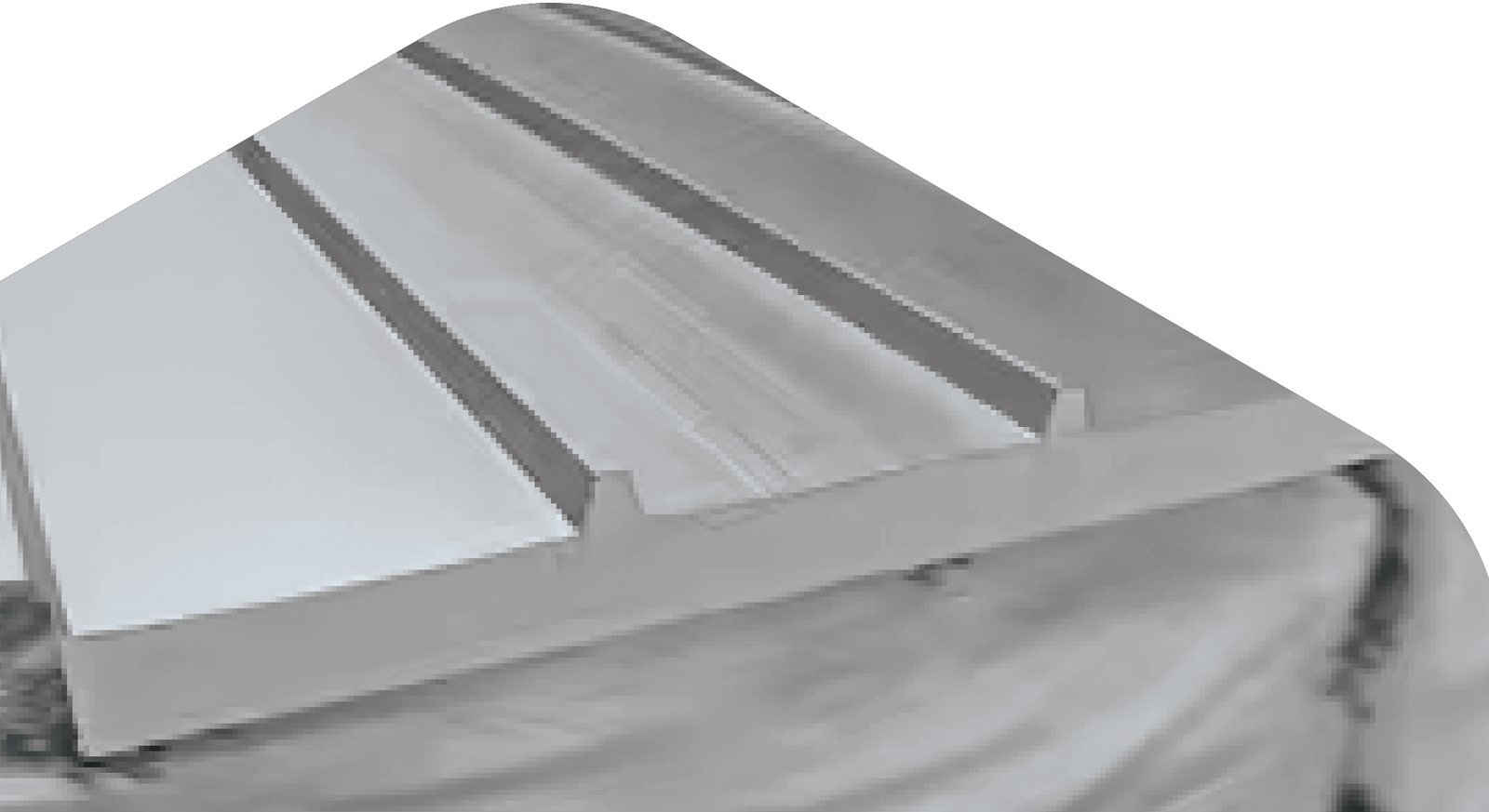

Polyurethane (PU) Panel
| PU Insulation Panel | |
|---|---|
| PU Panel Thickness | 50, 75, 100, 125, 150 mm |
| PU Panel Length, Max | 10.6 m |
| Panel Width (Standard) | 1168.4 mm |
| Surface Material | Color Coated Galvanized Steel Sheet |
| Sheet Thickness | 0.050 mm |
| Color | RAL 9016 |
| Insulation Material | Polyurethane (PU) Rigid Foam |
| Density (PU) | Approx. 40–45 kg/m³ |
| Thermal Conductivity | 0.018 Kcal/m·h·°C |

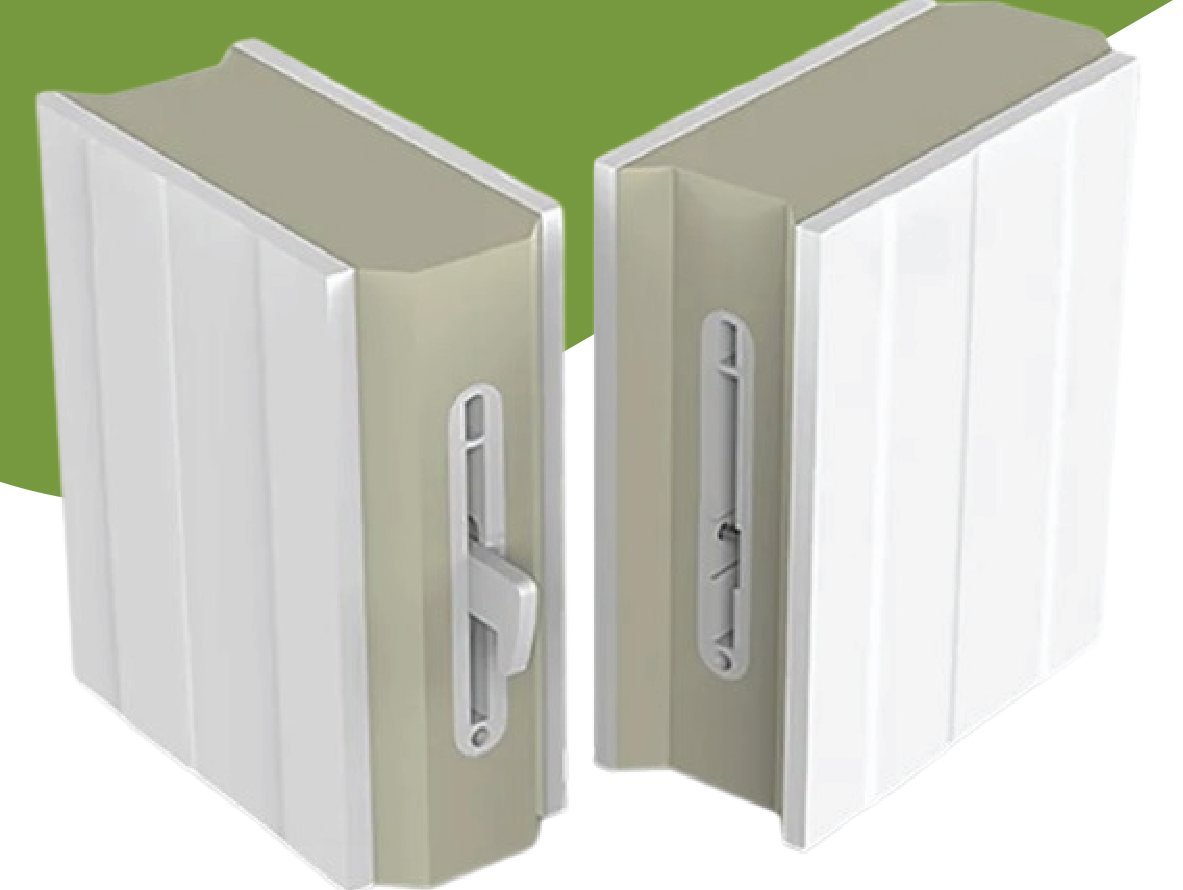

| Joint Material for PU Panels | Cam Lock (Galvanized) |
| PU Panels Joint Sealant | Silicone (Odorless Deoxime Type) |
| Panel Weight | |
|---|---|
| Color Steel Sheet Thickness | 0.050 mm |
| Surfacing Material | Color Steel Sheet |
| Component Material | Hard Foamed Polyurethane |
| Major Member | |
|---|---|
| Joint System | Cam Lock |
| Joint | Silicone Sealant |
| Thermal Conductivity K-Value | 0.0177 Kcal/m²·h·°C |
| Sound Insulation Properties | 25 dB |
| Cold Room Door · Size (W×H) 34″ × 76″ | ||
|---|---|---|
| Door Hinge | Skew Hinge (Die-Cast Zinc), Chromate Treatment | Withstood Open/Close Test (1,000,000 repetitions) |
| Door Latch | Safety Latch with Lock (Die-Cast Zinc), Chromate Treatment | If the door locks while someone is inside, it can easily be unlocked by pushing the inside bar |
| Sealing for Doors | Synthetic Rubber | Extrusion Forming Material |
| Item | Material | Finish | Color | Remarks |
|---|---|---|---|---|
| Sealing Material (Joints) | Micon Sealing | — | White | Odorless Deoxime Type |
| Sealing for Doors | Synthetic Rubber | Extrusion Forming Material | Black | — |
| Door Latch | Safety Latch with Lock (Die-Cast Zinc) | Chromate Treatment | — | Can easily be unlocked from inside by pushing the inside bar |
| Door Hinge | Skew Hinge (Die-Cast Zinc) | Chromate Treatment | — | Withstood Open/Close Test (100,000 repetitions) |

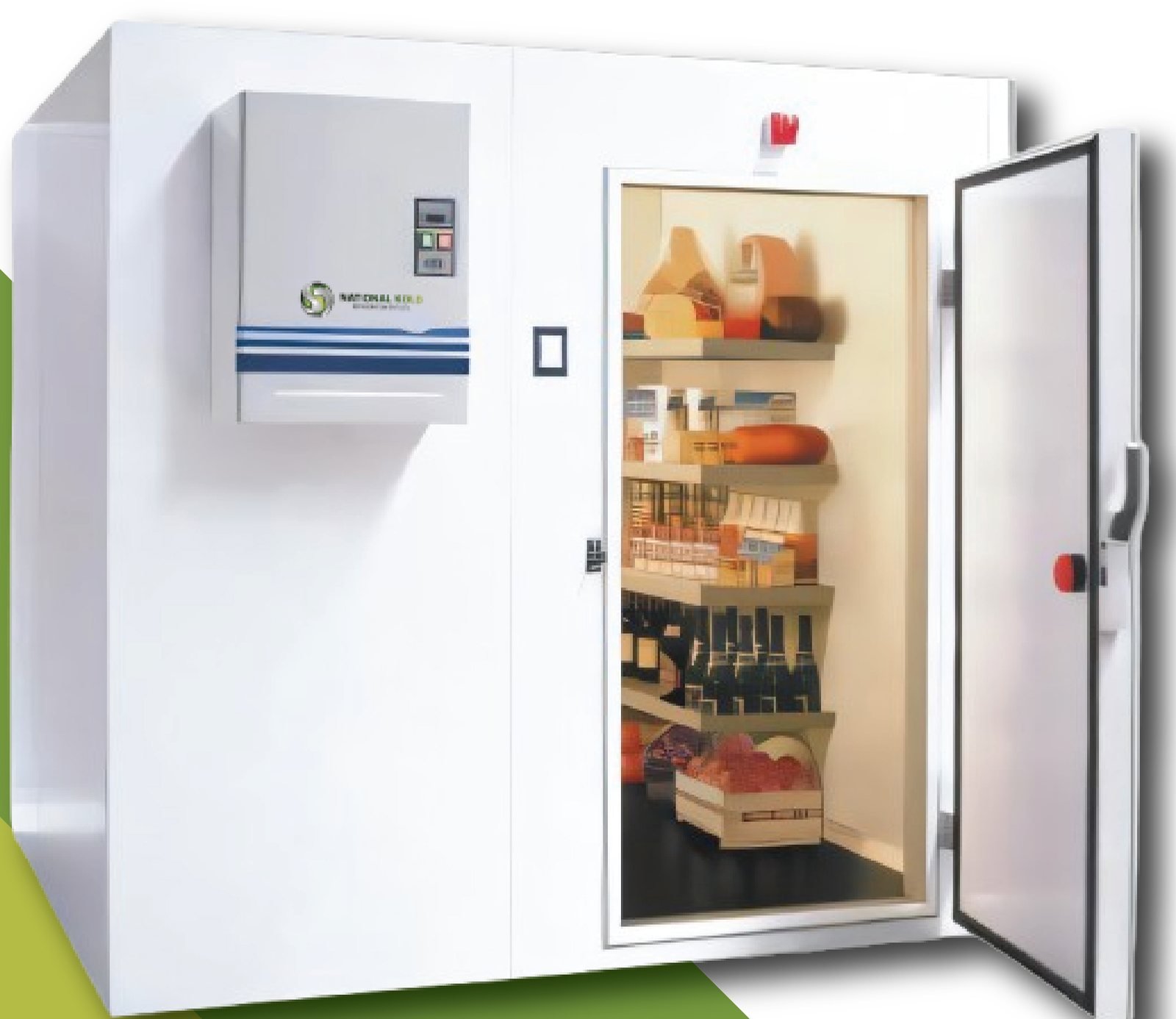

Our insulated panels for cold storage and freezer rooms are easy to install and adhere to stringent standards for food preservation. Our "Clean Room" solutions, designed for controlled environments, are ideal for food processing, surgical facilities, pharmaceutical applications and electronics manufacturing.
National Kold Refrigeration (Pvt.) Ltd.
A premier producer of high-quality polyurethane (PU) sandwich panels in Pakistan, specializing in solutions for cold rooms, blast rooms and anterooms. Using advanced technology, our PU insulated panels are durable, corrosion-resistant, safe and hygienic. Their superior insulation provides an exceptional barrier while saving space: one-third to one-half the thickness of traditional concrete walls.

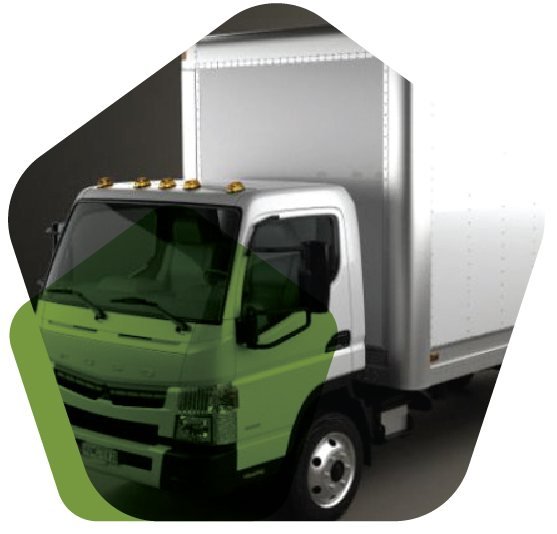

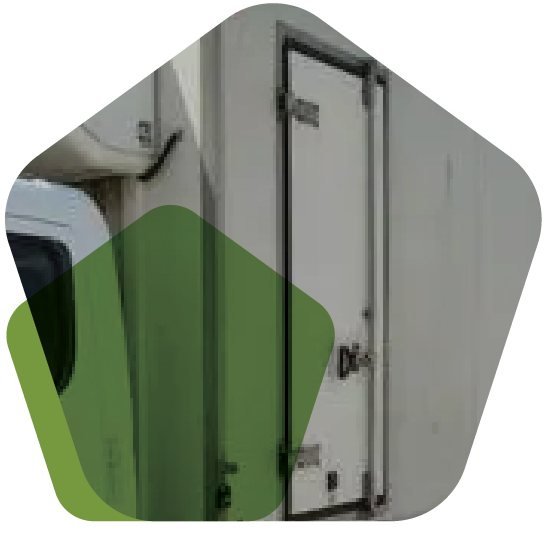

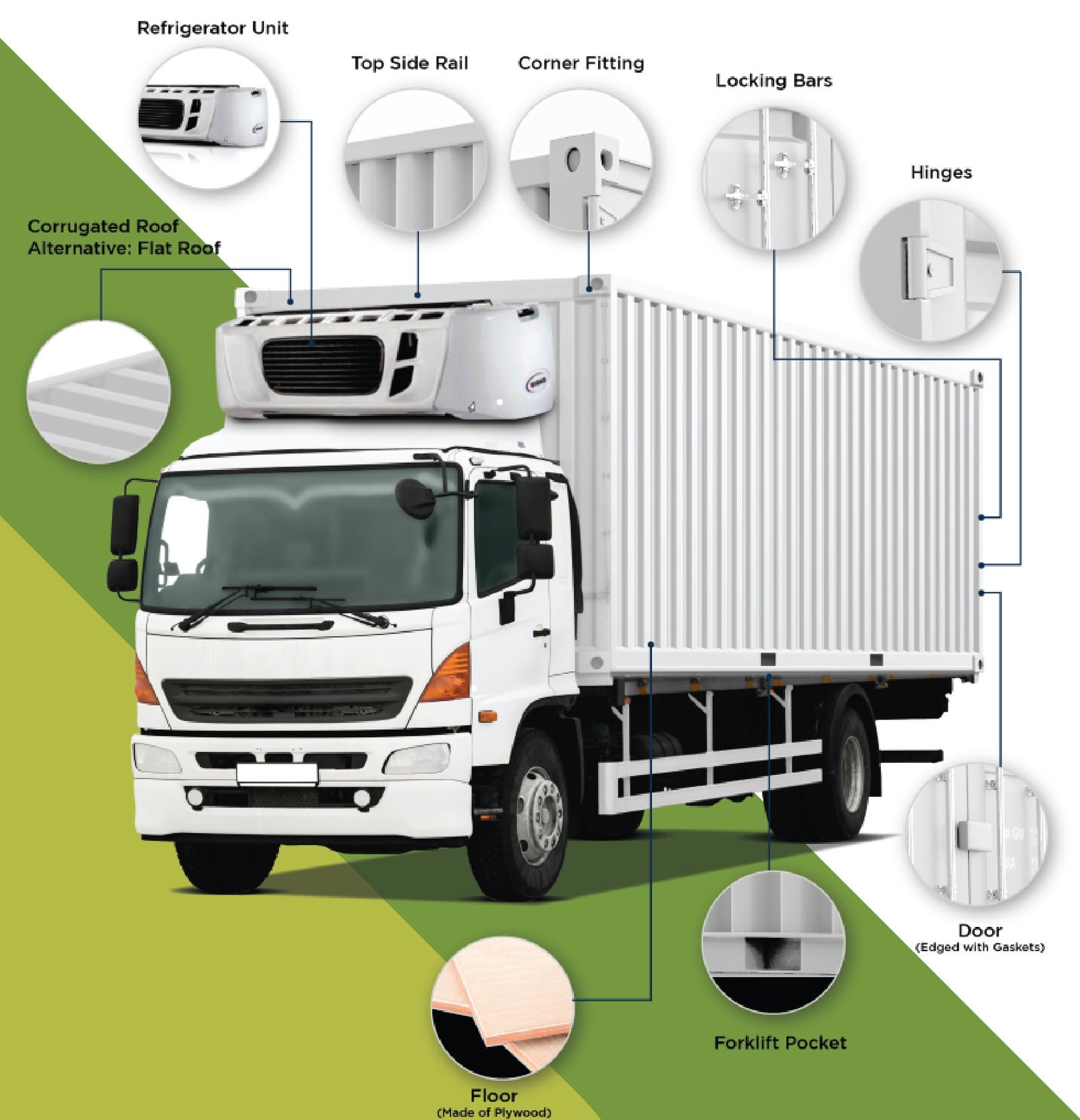

Insulated wall thickness options include 75 mm for small vehicles, 100 mm for mini trucks and 125 mm for heavy loading trucks. The construction features a robust heavy-structure frame with pre-fabricated polyurethane insulation, so the container is completely airtight.
Outside: pre-coated GI sheet skin, 0.8 mm. Inside: pre-coated sheet skin 0.8 mm, or SS Grade 304, 0.5 mm. Floor: outside pre-coated GI sheet 0.8 mm, inside SS, 1.5 mm.

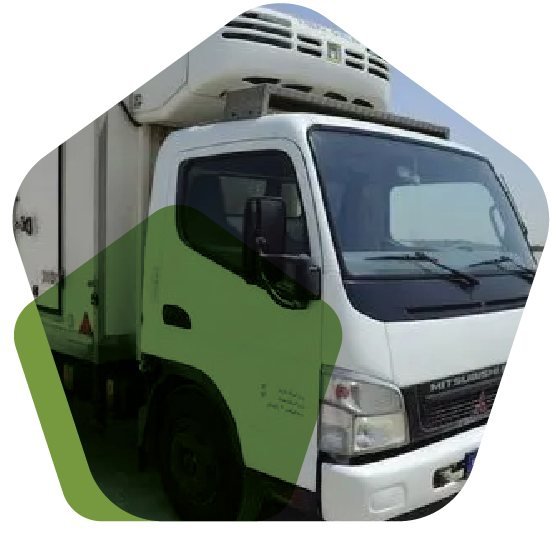

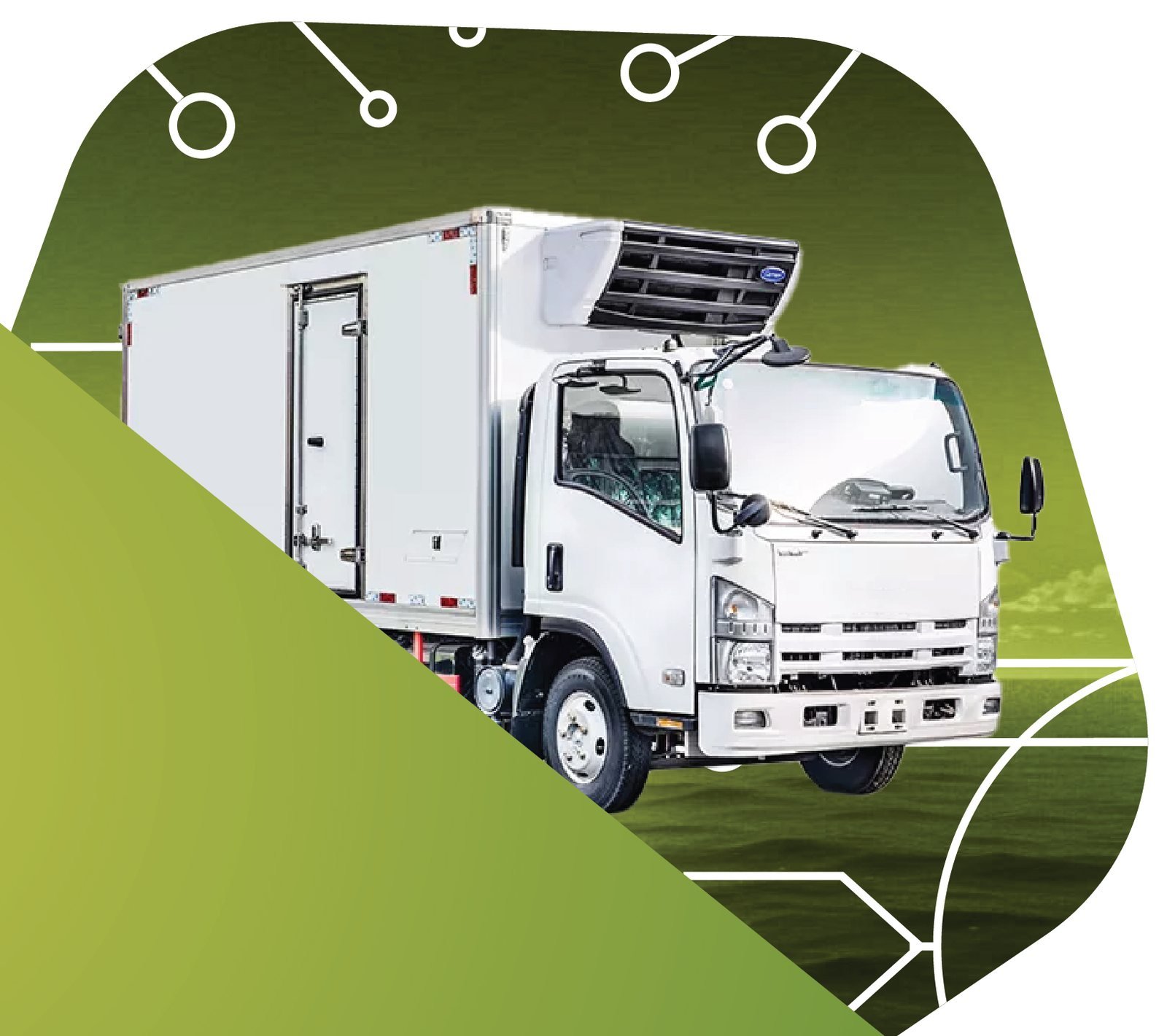

A complete fleet of temperature-controlled vehicles for all perishable goods: ice cream, candy, fruits, vegetables and frozen bakery products.
Interior and exterior surfaces are designed for easy cleaning. We also specialize in manufacturing eutectic mobile containers for deliveries, compatible with all types of vehicles.

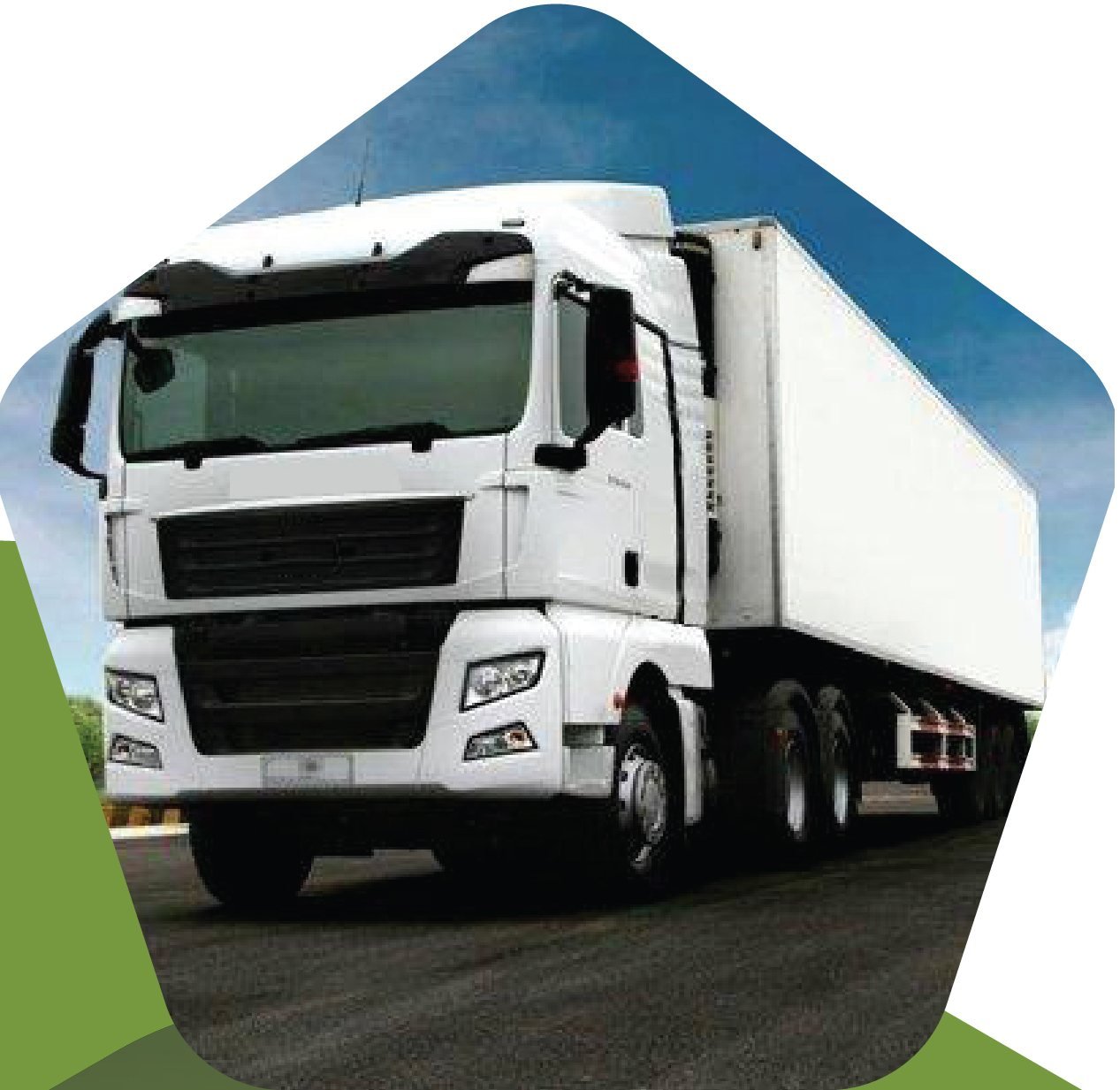

A wide selection of superstructures for freight vehicle chassis, including specialized refrigerated containers, reefer containers and cooling units, built for the distinct needs of each industry.

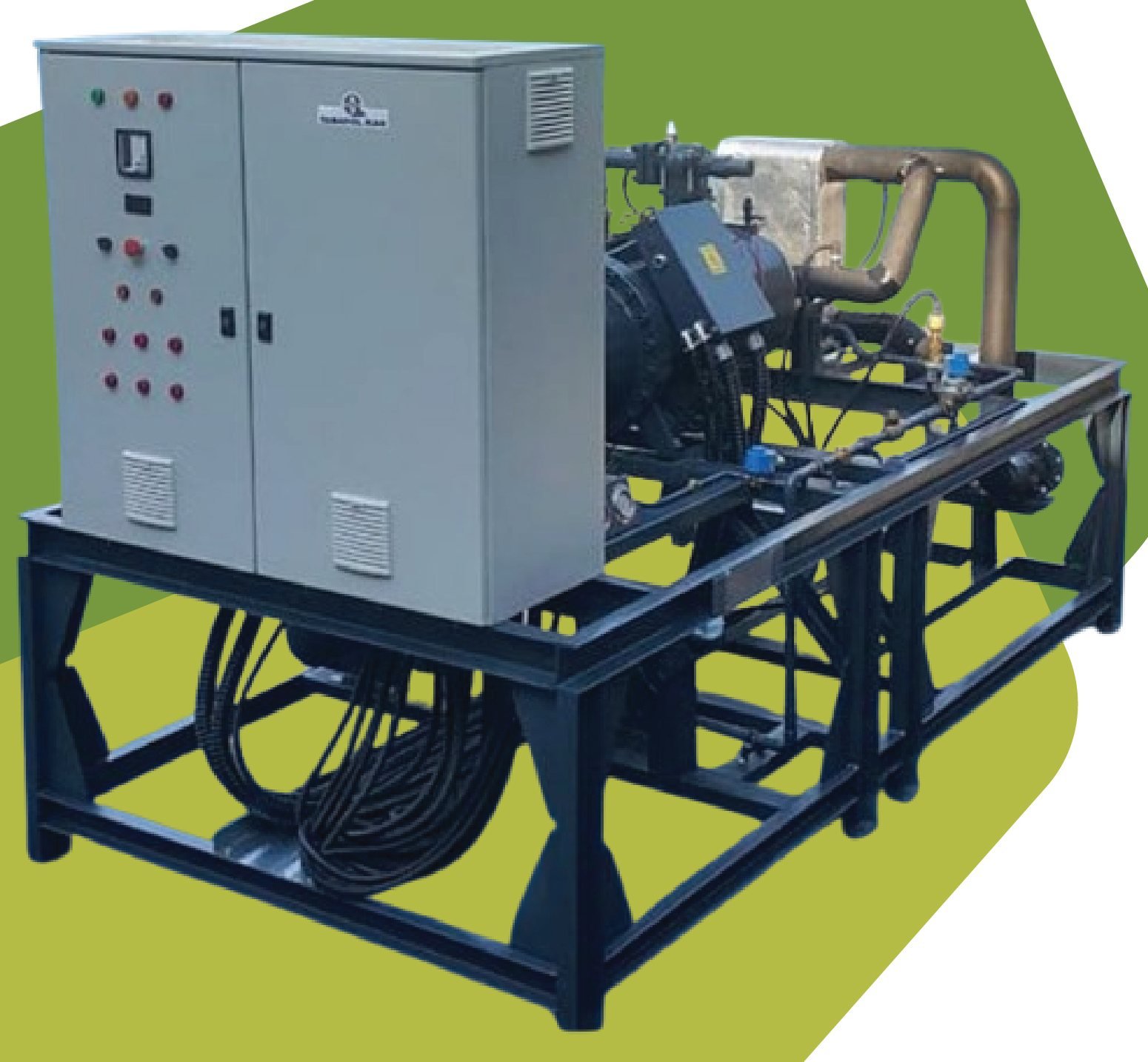

We supply an excellent, high-quality range of refrigeration units in various sizes and specifications, both air-cooled and water-cooled: energy efficient, low noise, easy to maintain and compact, with the same high performance for many years.

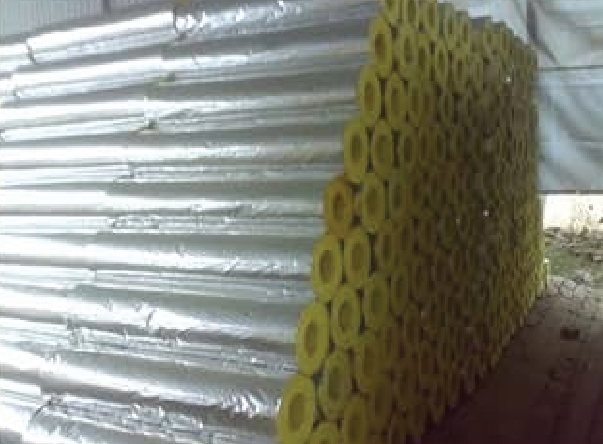

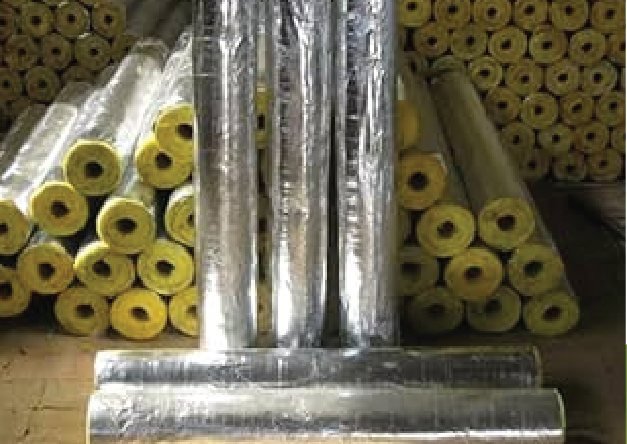

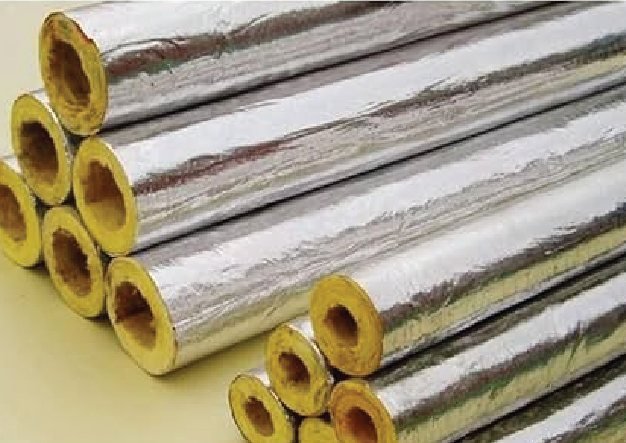

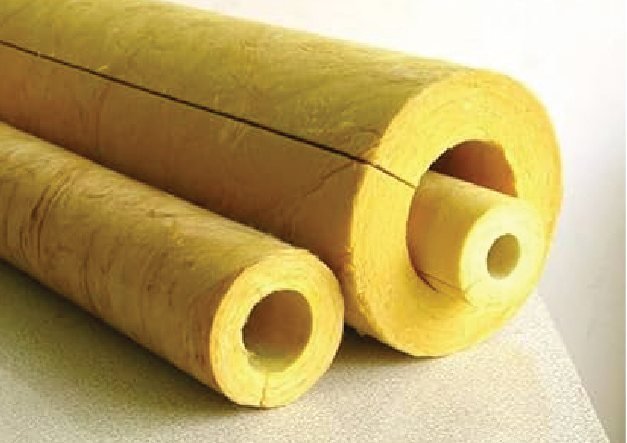

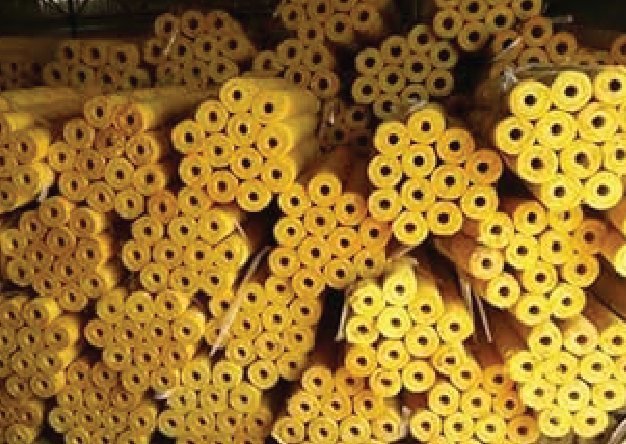

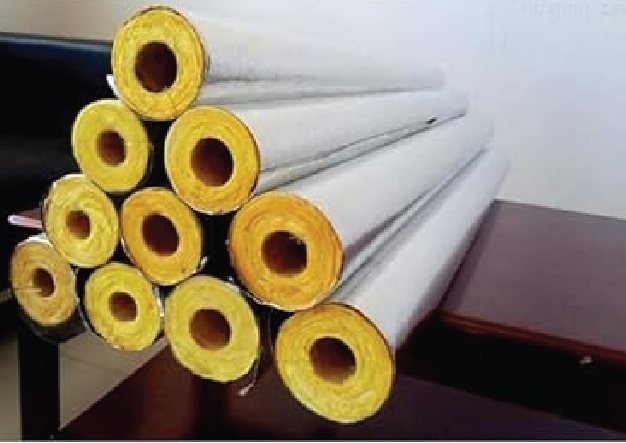

Pipe insulation is manufactured from rigid polyurethane foam, known for its closed-cell structure, low density and excellent thermal stability. The range accommodates pipes from ½″ to 22″ N.P.B., with insulation thicknesses from 25 mm to 50 mm. Omega pipe insulation is standardized at a length of 1 metre and supplied in two longitudinal sections.
Pipe insulation is packed in impact-resistant corrugated cardboard boxes.
Performance of different insulating materials in terms of density, strength and thermal conductivity. Rigid PU foam reaches values of 0.020 W/mK or lower.
| Insulant | Density kg/m³ | Therm. Con. W/m²K @10°C | Comp. Stren. KPa | Shear Stren. KPa | Rel. Moisture Absorption |
|---|---|---|---|---|---|
| EPS | 15 | 0.040 | 35 | 100 | Medium |
| EPS | 30 | 0.037 | 110 | N/A | Medium |
| XPS | 32 | 0.027 | 300 | 170 | Low |
| PUR | 32 | 0.020 | 200 | 150 | Medium |
| Phenolic Foam | 32 | 0.027 | 170 | 50 | High/Med |
| Cellular Glass | 125 | 0.041 | 700 | 150 | Low |
| Mineral/Glass Fibre | 20 | 0.045 | N/A | N/A | High |
| Typical Properties | |||
|---|---|---|---|
| Property | Test | Unit | Value |
| Density | ASTM D 1622 | kg/m³ | 50 |
| Compressive Strength at 10% Deflection | ASTM D 1622 | kN/m² | 200±50 |
| Thermal Conductivity | ASTM C 518 | W/m·K | 0.020 |
| Water Vapour Perm | ASTM C 355 | Perm-In | — |
| Working Temperature | — | °C | −180 to +120 |
| Water Absorption | ASTM D 2842 | % Vol. | 2.0 |
| Dimensional Stability | ASTM D 2126 | % Change | 2.0 |
| Coeff. of Linear Exp. | BS 4370 | m/m°K | 7×10 |
| Flammability Class | DIN 4102 | — | B1, B2, B3 |
| Closed Cell Content | ASTM D 2856 | % | 90–95 |
Omega polyurethane foam remains stable up to 190–200°C; longer exposure to elevated temperature may result in melting and decomposition. A flash ignition value of 290–300°C was obtained using the Setchkin apparatus in accordance with ASTM D 1929.
Flame spread of rigid polyurethane foam is considerably reduced with non-combustible facings such as aluminium foil. Composite building materials of this sort attain favourable fire safety classifications such as DIN 4102, NEN 338 and BS 476.
Besides ignition risk and flame spread, the hazard of combustible material is also characterised by its contribution to the overall calorific balance of the fire.
The closed cells of finished rigid PU foam are filled with a blowing agent of extremely low thermal conductivity. Because the foam is enclosed and impervious to diffusion, values of 0.020 W/mK or lower can be established.

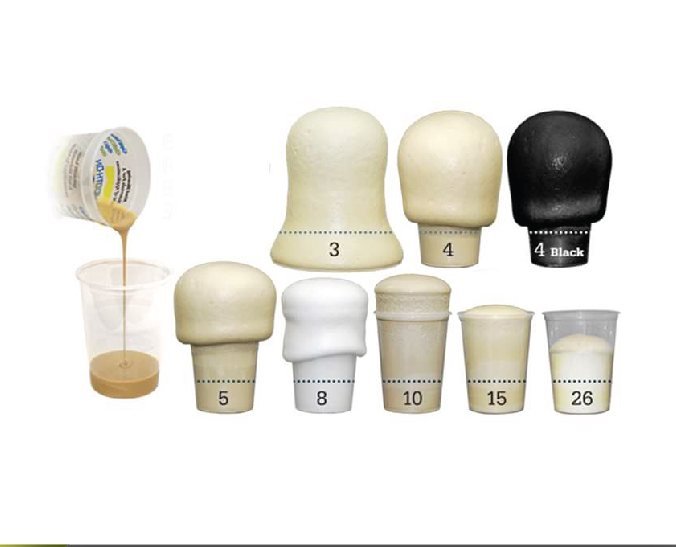

| Product Name | Application | Special Features | MDI | Blowing Agent | Viscosity @25°C |
|---|---|---|---|---|---|
| Polyfoam MA-5002Y | Discontinuous Panels | Conventional Product | Polymeric MDI | HCFC 141b | 2000–3000 |
| Polyfoam MP-50159-Y | Discontinuous Panels | Conventional Product | Polymeric MDI | HCFC 141b | 3500–4500 |
| Polyfoam DP 59500 | Discontinuous Panels | 141b blended polyfoam | Polymeric MDI | HCFC 141b | 400–600 |
| Polyfoam DP 55100 | Discontinuous Panels | B-3 grade 141b | Polymeric MDI | HCFC 141b | 240–280 |
| Polyfoam DP 55200 | Discontinuous Panels | B-3 grade 141b | Polymeric MDI | HCFC 141b | 3000–4000 |
| Polyfoam DP 55400-BP | Discontinuous Panels | 70:30 blended 141b v 55100 | Polymeric MDI | HCFC 141b | 220–300 |
| Polyfoam DP 58100 | Discontinuous Panels | B-2 grade 141b blended product | Polymeric MDI | HCFC 141b | 400–600 |
| Polyfoam DP 58200 | Discontinuous Panels | PIR grade 141b | Polymeric MDI | HCFC 141b | 3000–4000 |
| Polyfoam DP 59100 | Discontinuous Panels | PIR grade product without 141b blended | Polymeric MDI | Blowing Agent | 400–600 |
| Polyfoam DP 59200 | Discontinuous Panels | CP Based B-3 grade product | Polymeric MDI | Blowing Agent | 3000–4000 |
| Polyfoam DP 56100CP | Discontinuous Panels | CP Based B-3 product | Polymeric MDI | Cyclopentane | 3000–4000 |
| Polyfoam 56300CP | Discontinuous Panels | CP Based PIR grade product | Polymeric MDI | Cyclopentane | 3000–4000 |
| Polyfoam MA 54801-Y | Discontinuous Panels | Adhesion promoter | Polymeric MDI | No agent | 3000–4000 |
| Polyfoam SP 66000 | Spray Foam | Cost effective spray foam product | Polymeric MDI | HCFC 141b | 3000–4000 |
| Product Name | Application | Special Features | MDI | Blowing Agent | Viscosity @25°C |
|---|---|---|---|---|---|
| Polyfoam JC 85455 | Motorcycle seats | High reactivity system | Modified MDI | Water blown | 1100–1400 |
| Polyfoam JC 85466 | Motorcycle seats | Low reactivity system | Modified MDI | Water blown | 800–1200 |
| Polyfoam JC 85499 | Motorcycle seats | High density seats | Modified MDI | Water blown | 1000–1400 |
| Polyfoam 86200 | Motorcycle seats | Low density seats | Modified MDI | Water blown | 1000–1400 |
| Polyfoam 86300 | Motorcycle seats | Robust system | Modified MDI | Water blown | 1400–1600 |

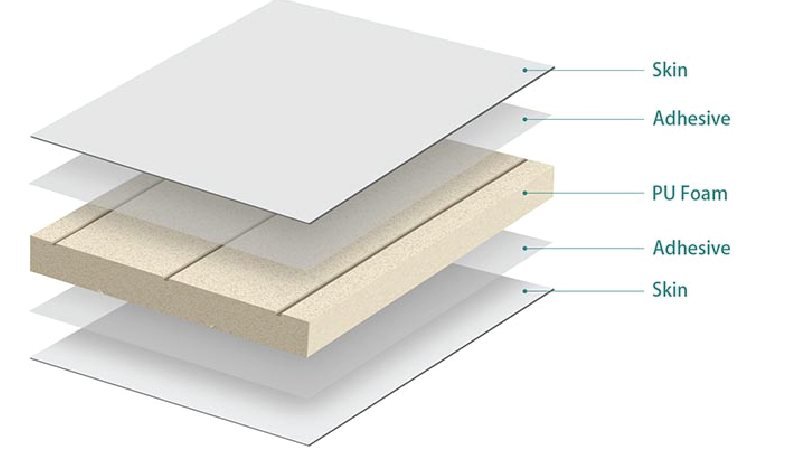

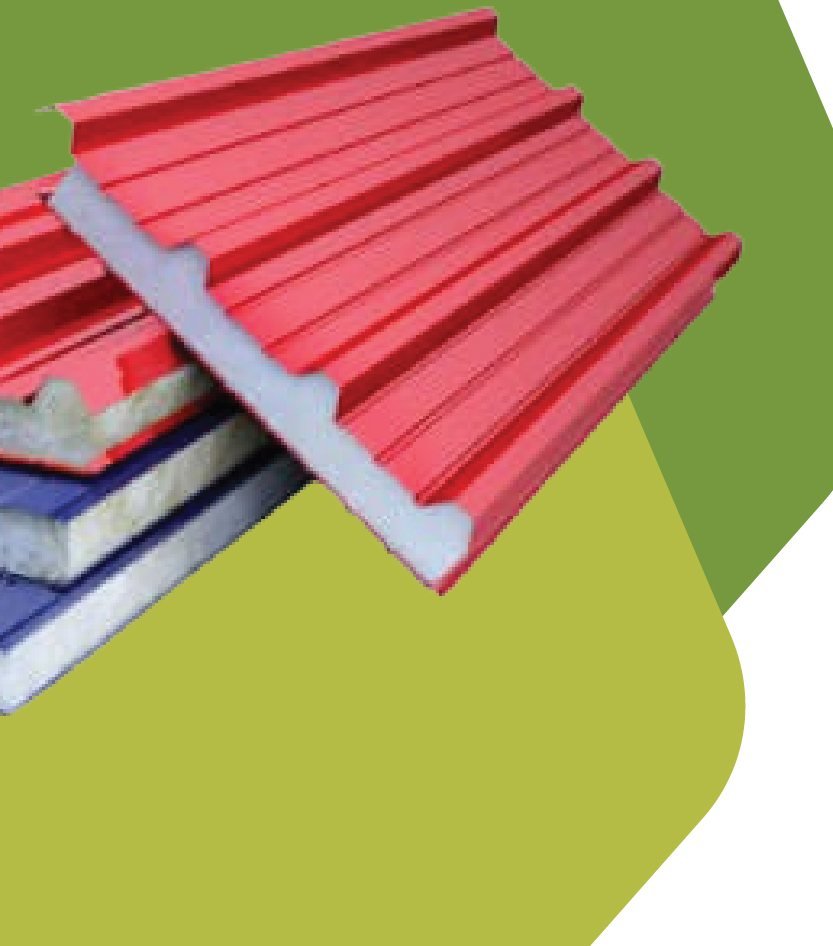

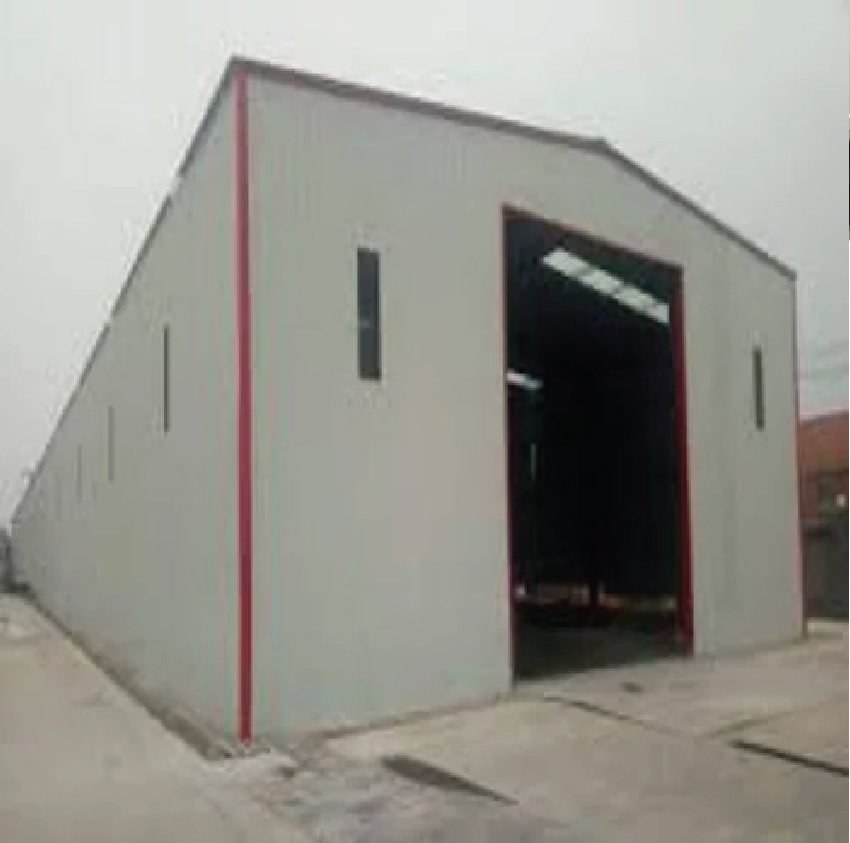

Our PU sandwich panel is made of hot galvanized steel and PU insulation. Inner and outer sheets are formed on a roll-forming machine, and polyurethane foam is injected under high pressure between them, where it solidifies and bonds. The panel can be combined with pre-painted hot galvanized steel or stainless steel sheet, with a smooth surface and excellent performance. It is an environmentally friendly, fireproof panel, widely used for roofs, walls and doors of large workshops, warehouses, supermarkets, office buildings, stadiums and waiting rooms.

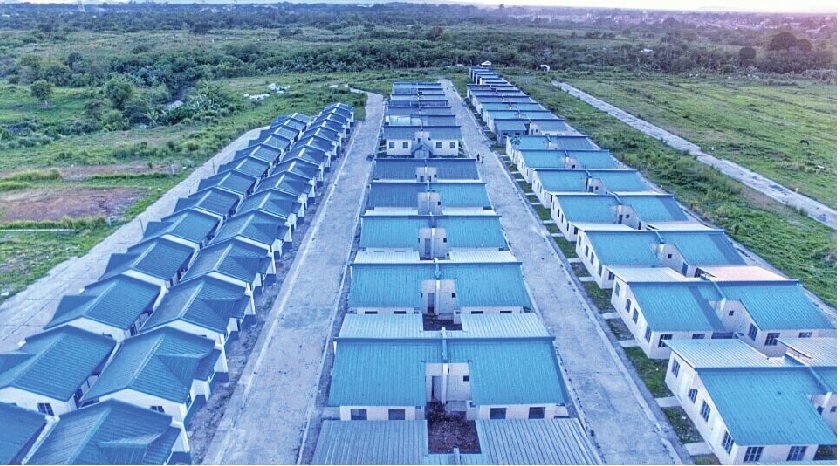

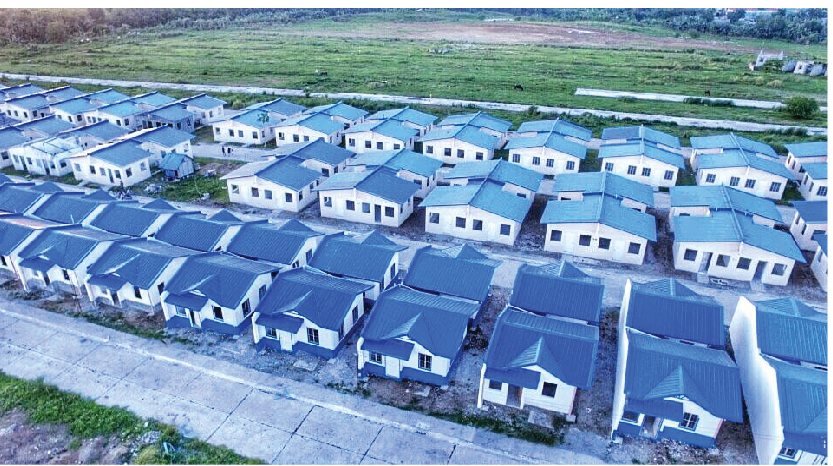

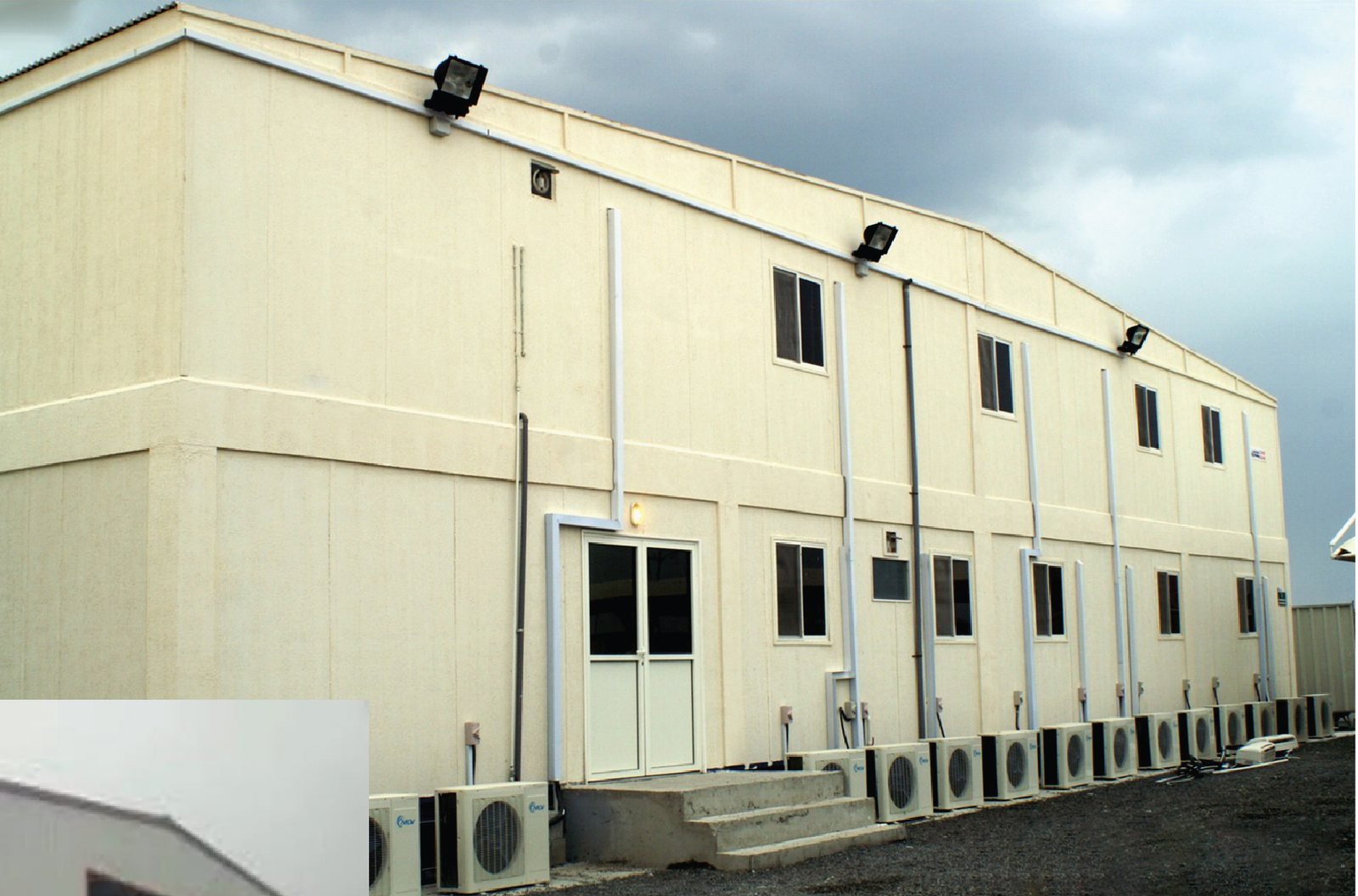

With over a decade of experience delivering a wide range of factory-built units across Pakistan, we serve industrial, commercial and government clients. We design, manufacture and construct prefabricated homes and steel structures: mobile homes, offices, labour camps, temporary site offices, guard rooms and more.
